VoltPassThru Auto provides dedicated cable pass-through solutions for routing automotive power and signal wiring through firewalls, floor panels, bulkheads, amp racks, and custom interior panels. A push-in rubber grommet primarily isolates the cable from the cut panel edge. A threaded compression gland clamps around the cable jacket and uses panel sealing components to create a dust-tight, air-tight, and weather-tight cable entry when properly sized and installed. Use this guide to identify the right application, then verify cable O.D., mounting-hole size, and thread reach before installation.
VoltPassThru Auto
Automotive-focused cable pass-through hardware organized around common wire sizes, actual cable O.D., mounting-hole dimensions, and available thread reach.

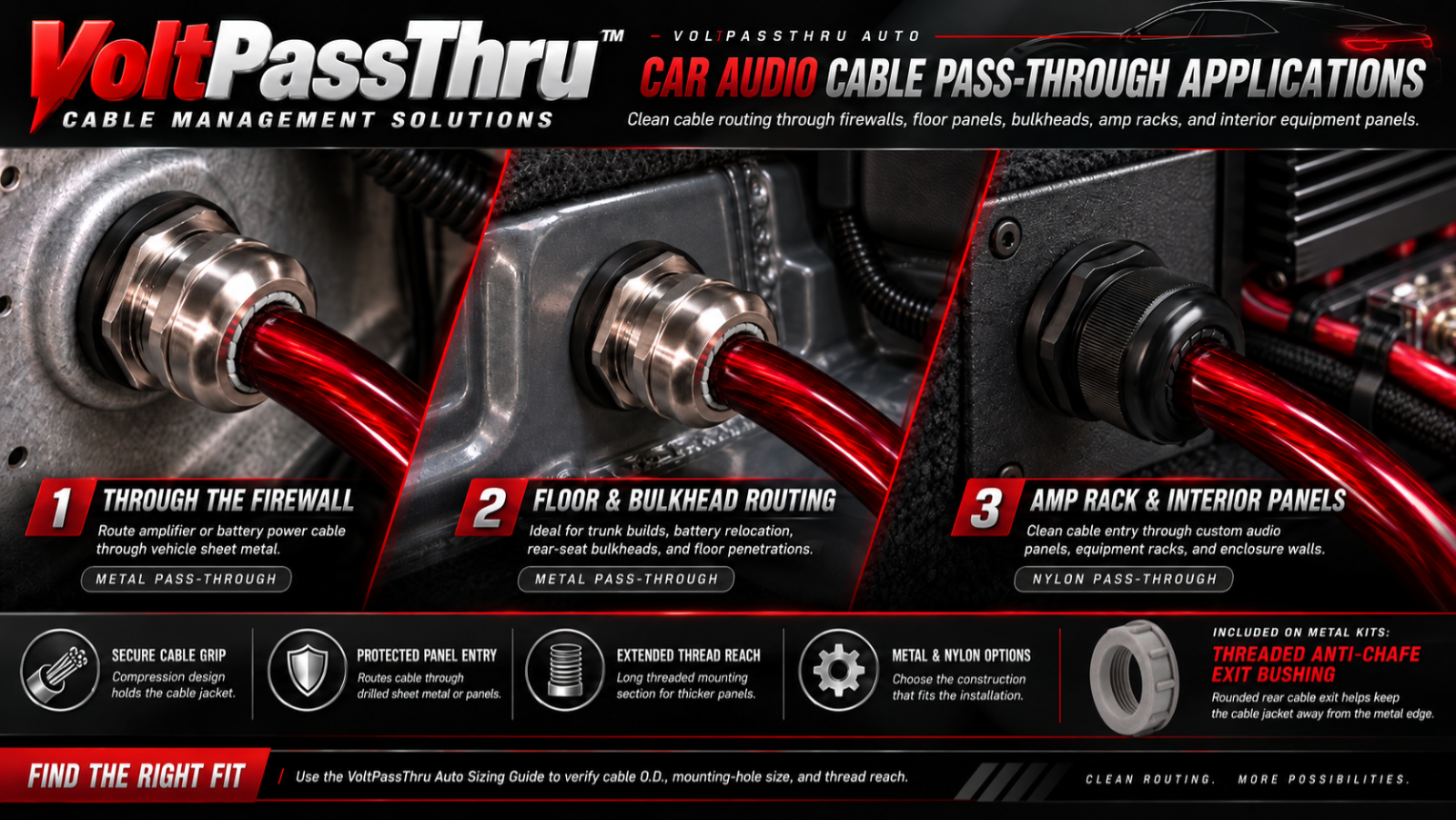

Common Car Audio Pass-Through Applications
Through the Firewall
Route heavy amplifier or battery power cables safely through the vehicle firewall using a dedicated threaded pass-through rather than an unprotected hole. The compression gland isolates wiring from cut metal edges while sealing against engine bay heat, dust, and drafts. A reliable upgrade over standard grommets for high-current car audio feeds.
- Amplifier main power runs (0 Gauge & 4 Gauge)
- Engine bay battery-to-cabin cable routing
- Auxiliary power feeds crossing the sheet-metal firewall
Floorpan & Bulkhead Routing
Floor pans, trunk partitions, and rear-seat bulkheads are frequent routing points for rear battery relocations and auxiliary distribution blocks. When secured through vehicle sheet metal, the threaded body and locknut provide firm mechanical retention and weather-tight protection against road spray, dirt, and chassis vibration.
- Trunk battery relocation cables routed through floor pans
- Rear-seat structural bulkhead cable transitions
- Secondary power distribution feeds and high-current ground runs
Amp Rack & Interior Panels
Nylon pass-throughs create a clean, professional cable entry through custom amplifier racks, false floors, trunk trim, and speaker sub-enclosures. They protect cable jackets against abrasion from wood or composite panels while delivering integrated strain relief for multi-conductor bundles.
- Custom amplifier racks and false floor panels
- Subwoofer enclosures and equipment partition walls
- Bundled remote turn-on, sensor, and auxiliary wiring
Threaded Cable Gland vs. Push-In Rubber Grommet
While standard push-in rubber grommets rely solely on a panel groove for retention and primarily isolate bare metal edges, threaded compression glands mechanically clamp the sheet metal between a threaded body and rear locknut. VoltPassThru additionally tightens an internal compression insert firmly around the cable jacket, preventing movement and sealing against dust and drafts. Clean hole preparation and matching the gland to your measured cable O.D. remain essential for both retention and sealing.
How to Choose the Correct Automotive Size
Automotive installations commonly begin with conductor size such as 1/0, 4, 6, or 8 AWG as an initial baseline.
Measure the actual finished outside diameter using calipers across two axes to confirm true insulation and jacket thickness.
If split wire loom will enter and be clamped inside the pass-through, measure the complete cable-plus-loom assembly. If loom stops short, measure cable only.
Choose only hardware whose verified clamping range encompasses your measured finished outside diameter.
Confirm the required panel opening diameter, rear locknut access clearance, and usable threaded reach before drilling.
Recommended Hardware by Automotive Cable Size
Large Automotive Power Cable
Commonly selected for 1/0 AWG car-audio power runs and battery relocations. Requires 1-1/8″ (29mm) hole cutout. Larger cables (such as 2/0) may fit only when their measured finished O.D. falls within this range. Actual finished cable O.D. determines fit.
4 Gauge Power Cable
Standard for mid-sized amplifiers and auxiliary power feeds. Requires 7/8″ (21 – 23 mm) hole cutout. Accommodates typical 2 and 4 AWG cables when measured outside diameter is within range. Actual finished cable O.D. determines fit.
6–8 Gauge Power Leads
Selected for compact active subwoofers, auxiliary lighting, and secondary distribution blocks. Requires 3/4″ (19 – 20 mm) hole cutout. Nominal AWG provides a starting guideline; actual finished cable O.D. determines fit.
10–14 Gauge / Small Auxiliary Wiring
Selected for remote turn-on leads, sensor wiring, and bundled speaker pairs passing through interior panels and enclosures. Requires 1/2″ (13mm) hole cutout. Measure total bundle diameter before drilling.
Nylon Pass-Throughs
Lightweight polyamide (PA66) construction engineered for amplifier racks, false floors, trunk partition panels, and speaker enclosures. Non-conductive, corrosion-proof, and ideal for custom interior fabrication where clean aesthetics and weight savings matter.
Automotive Installation Considerations
When correctly sized and properly installed, the compression gland creates a dust-tight, air-tight, and weather-tight cable entry around the cable jacket and mounting surface. Correct cable O.D., clean hole preparation, proper washer placement, and secure tightening are important to the finished seal.
Check Clearances Before Drilling
Inspect both sides of the firewall, floor panel, or bulkhead before drilling. Verify clearance from existing vehicle wiring, heater cores, AC lines, brake/fuel lines, and structural braces.
Prepare the Panel Opening
Drill the verified mounting-hole size and deburr the opening thoroughly with a deburring tool or file so panel washers seat completely flush against bare, smooth sheet metal.
Confirm Rear Locknut Access
Confirm there is enough access behind the panel to install and tighten the rear locknut without interference from interior brackets or firewall insulation.
Maintain Cable Bend Radius
Maintain a gradual, relaxed bend radius leading into the grommet. Avoid forcing heavy cable into an immediate sharp bend right at the pass-through fitting.
Use the Wrench Flats
Use an appropriately sized open-ended wrench on the machined gland body and locknut flats. Avoid slip-joint pliers that can mar the finish or apply uneven torque.
Measure Wire Loom Correctly
If split loom passes through and is clamped by the gland, measure the complete assembly O.D. with loom fully closed. If loom stops short, measure cable jacket alone.
For a complete step-by-step drilling, deburring, and sealing procedure, see our Firewall Grommet Installation Guide.
Frequently Asked Automotive Sizing Questions
Ready to Find Your Size?
Measure your finished cable outside diameter with calipers, then use the VoltPassThru Auto Sizing Guide to select the appropriate pass-through model and mounting-hole size.
Not sure which size fits? Measure your finished cable outside diameter and contact us with the measurement.
Installing a winch, hydraulic pump, or heavy battery system on a trailer? See our Trailer Wiring Cable Pass-Through Guide.
